What Do Ohms Mean on Vaporizer?

Ethan Parker

Written by: Ethan Parker

Updated on December 19, 2023

What Do Ohms Mean on Vaporizer

What Do Ohms Mean on Vaporizer?

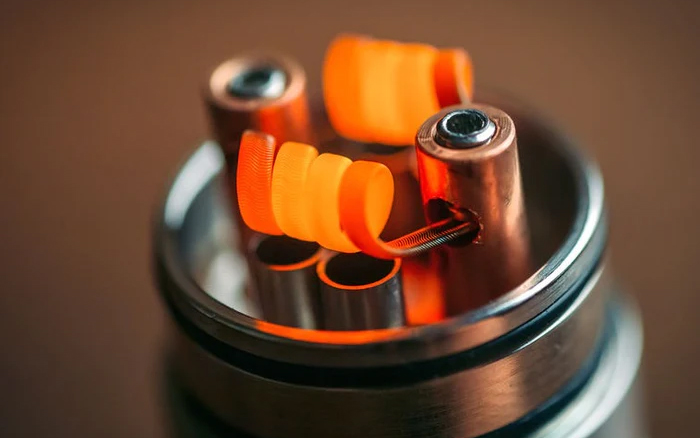

Ohms on a vape refer to the electrical resistance of the atomizer coil used in the vape device. This measurement, in ohms (Ω), is crucial in determining the heating temperature and intensity of the vapor. Lower resistance (measured in sub-ohms) typically results in more heat, greater vapor production, and more intense flavor. Conversely, higher resistance coils produce less heat and a cooler vapor.

The choice of resistance level affects the vaping experience, including flavor, throat hit, and vapor quantity. It’s essential for vapers to match the coil resistance with the appropriate power output of their device to ensure optimal performance and avoid damage to the equipment or potential safety hazards.

How Ohms Influence Coil Temperature, Vapor Production, and Flavor?

The resistance (Ohms) and voltage of a vaporizer jointly alter the coil’s temperature, thereby affecting the vapor’s thickness, flavor, and the overall vaping experience of the user. Coils with lower resistance, such as sub-ohm coils, tend to produce a significant amount of vapor. This is because these coils require additional power to heat up, leading to more e-liquid being vaporized. In contrast, coils with higher resistance may generate less vapor but are more efficient in terms of battery life and e-liquid consumption satisfaction.

Coil Temperature

The relationship between the coil’s resistance and the heat it generates is governed by both Ohm’s Law and Joule’s Law. Ohm’s Law states that the current through a coil is inversely proportional to its resistance for a given voltage.

I = U / R

Higher resistance (higher Ohms) means less current for the same voltage. However, the heat generated by the coil, which directly affects the temperature and the vapor density, is explained by Joule’s Law. According to Joule’s Law, the heat generated by an electrical circuit is directly proportional to the square of the current (I), the resistance (R), and the time the current is applied (t), expressed as

Q = (U2/R)*t

In practice, when using low-Ohm coils, the lower resistance combined with a constant voltage on the vaporizer can result in higher temperatures, in accordance with Joule’s Law. This effect leads to increased heat generation, enabling the coil to reach higher temperatures and produce thicker vapor, even when operating at lower power settings.

Vapor Production

Ohm levels are closely tied to vapor production. Low-ohm coils are known for producing large, dense clouds of vapor due to their ability to heat up quickly and vaporize a substantial amount of e-liquid in a short period. This characteristic is often sought after by cloud chasers and vapers who enjoy a visually impactful vaping experience. In contrast, high-ohm coils produce less vapor, which is more discreet and resembles the smoke produced by traditional cigarettes.

Flavor Experience

The flavor experienced while vaping is also influenced by the ohm level. Lower resistance coils can intensify the flavor due to the increased heat, which can enhance the e-liquid’s taste profile. However, if the temperature is too high, it might lead to a burnt taste. High-ohm coils tend to deliver a milder flavor, as the cooler temperature doesn’t vaporize the flavor compounds as intensely. This subtler flavor delivery is often preferred by those who enjoy a more understated or traditional taste reminiscent of smoking.

What Are the Ohm Ranges of Different Types of Vaporizers?

Standard vaporizers usually operate within a resistance range of 1.2 to 2.8 ohms, a spectrum catering to the needs of most vapers, balancing vapor production with flavor. Devices below 1.2 ohms fall into the sub-ohm category, offering intense experiences, while those above 2.8 ohms are high-resistance, typically providing a milder experience. The ohm value is a key factor in determining the vapor’s temperature, texture, and density, thereby shaping the vaping experience. In the following, we examine several key types of vaporizers and their typical ohm ranges. Each type of vaporizer, with its distinct ohm range, caters to different preferences and experiences, ranging from the subtle and simple to the bold and complex.

Cig-A-Likes

In the realm of Cig-A-Likes, the focus is on emulating the traditional cigarette experience, both in design and use. These typically have ohm readings ranging from 1.5 to 2.8 ohms, catering to beginners or those seeking familiarity.

Vape Pens

Moving on to Vape Pens, these devices strike a balance between the compactness of Cig-A-Likes and the performance of more advanced systems. Their ohm range generally lies between 1.0 to 2.5 ohms, making them suitable for those desiring a step up in intensity without sacrificing portability.

Box Mods

Box Mods, renowned for their customization and powerful batteries, offer a wide ohm range from 0.1 to 2.5 ohms. This versatility makes them a favorite among advanced users who crave a tailored vaping journey.

Pod Systems

With Pod Systems’ ohm range mostly sitting between 1.0 to 2.0 ohms, are the epitome of user-friendly design and simplicity, appealing to those who prefer convenience and ease of use.

Mechanical Mods

Mechanical Mods represent the raw, unfiltered face of vaping devices. They can accommodate extremely low ohms, sometimes as low as 0.1 ohms, and are primarily used by seasoned vapers who understand the intricacies of vaping at such low resistance levels.

Sub-Ohm Tanks

Lastly, Sub-Ohm Tanks, often featuring resistance below 1.0 ohm, are engineered for those who chase dense, flavor-rich clouds, providing an intense vaping experience that appeals to veterans and enthusiasts alike.

High-Ohm vs. Low-Ohm Vaporizers – How to Chooose Right One?

Coil resistance can vary significantly, ranging from a low 0.1 ohms to over 3.0 ohms. “Sub-ohm” coils, which have a resistance below 1.0 ohm, are favored by experienced vapers looking to create large, dense clouds of vapor with rich flavors. These coils need more power for heating, resulting in a warmer and denser vapor experience.

On the flip side, regular or “above-ohm” coils, with a resistance of 1.0 ohm or more, are generally preferred by beginners or those who want a vaping experience similar to smoking cigarettes. They offer a gentler vaping experience and are more efficient with smaller battery-powered vaporizers, due to their lower power requirements. These coils usually produce a cooler vapor, making them ideal for a more subdued and familiar experience. The table below summarise the difference between high-Ohm and low-Ohm vaporizers.

Feature High-Ohm Vaporizers Low-Ohm Vaporizers
Resistance 1.0 Ohm or above Below 1.0 Ohm
Vapor Output Less, mild inhalation experience Rich, suitable for large cloud production
Flavor More delicate, similar to traditional cigarettes More intense and robust
Battery Usage Less power consumption, suitable for small capacity batteries Requires more power, suited for large capacity batteries
Inhalation Method MTL (Mouth to Lung) DTL (Direct to Lung)
Suitable For Beginners or those who prefer a traditional smoking experience Experienced users, seeking intense flavor and large cloud production

What are Factors Affect the Ohms?

Usually, the factors of affecting the Ohms are not directly under the control of the end-user, unless they are custom-building their own coil. These elements include the material used for the wire, the wire’s gauge (thickness), and the number of coil wraps. These factors, along with others like the length of the wire, the temperature, the coil design, and the type of wire used, significantly influence the electrical resistance measured in Ohms (Ω). Here’s a closer look at these factors and how they contribute to the overall resistance of a device:

  • Wire Thickness (Gauge): In coils, the thickness of the wire plays a significant role. Thinner wires have higher resistance, while thicker wires have lower resistance.
  • Length of the Wire/Coil: The longer the wire, the higher the resistance. This is because electrons encounter more resistance as they travel a longer distance.
  • Temperature: The resistance of most materials changes with temperature. Typically, resistance increases as the temperature rises.
  • Coil Design: In vaporizers, the design of the coil, such as the number of wraps or the diameter of the coil, can affect resistance. More wraps generally mean higher resistance.
  • Type of Wire Used: Different wire types (like Kanthal, Nickel, Titanium, etc.) have different resistances due to their material properties.
  • Cross-Sectional Area of the Wire: Wider wires (larger cross-sectional area) have lower resistance because they allow more room for electron flow.

Conclusion

The resistance (measured in ohms) of a coil in an e-vaporizer plays a pivotal role in determining how much power is needed to effectively heat the e-liquid and generate vapor. Whether you opt for a sub-ohm or above-ohm coil depends on your personal vaping preferences, the characteristics of your device, and the choices available to you.

Don’t hesitate to experiment with various elements of vaping. The type of e-liquid, coil material, number of wraps, airflow adjustments, and wicking materials can all significantly influence your vaping journey. Vaping is a personal experience, and the joy lies in discovering the perfect combination of e-liquid, coil, and device that aligns with your unique style and delivers the most satisfying experience.
